Gary Frost

Bookmarking Book Art — “Materials and mechanics for book conservation” by Paula Steere

Books On BooksLeave a comment

With the permission of the author and The Book & Paper Gathering, this essay by Paula Steere is being reposted at Books On Books because Steere’s observations about bookbinding lead to a closer look at works in the Books On Books Collection. Keep Steere’s essay open in this window, then open another window for one of the entries in this baker’s dozen to start:

Compare images in the open windows. Just as Gary Frost’s conservation work shed light on book art, Steere’s descriptions and explanations can lead to a greater appreciation of these artists’ works and others.

Thanks are extended to Paula Steere and The Book & Paper Gathering. Note that the essay is under copyright (©www.thebookandpapergathering.org, 2022) and that any use and/or duplication of this material requires express and written permission from the author Paula Steere and the site The Book & Paper Gathering.

Materials and mechanics for book conservation: Part I. Engineering concepts for spine lining design

Posted on Thursday 9th June, 2022 by thebookandpapergathering. Accessed 13 June 2022.

What stresses occur when we open a book? How do spine materials affect them? What are we really doing when we stick things on a book spine, sand them back, and then stick more things on? On what are we basing these decisions? As a book conservation student, keen to learn, I looked for spine structure information in popular conservation and bookbinding literature, but I found no satisfactory answers to my questions. So I did what I always do when I want to find out how things work: I talked to a mechanical engineer. This article is based on my MA Conservation dissertation research at Camberwell College of Arts, London. I realised early in the research process that I needed the knowledge of an engineer, and conveniently, there happened to be one in my family. Lee McIlvaine lives and works in the United States, has 30 years of mechanical engineering experience and specialises in mechanism and structural design. Five years later, we are still talking about book mechanics.

Spine lining materials are fundamental to the action of a book spine. Yet, a review of over 250 technical statements about book structure, lining materials or lining techniques from historical and contemporary conservation and bookbinding literature1 revealed that many statements are unqualified or unquantified. For example, Middleton (1998) advises that ‘when enough layers [of paper linings] have been applied, the end of the paper is trimmed off’, but he does not specify how many ‘enough’ would be. Technical information can also be contradictory between authors. For example, Szirmai (2001, p. 275) partially attributes the functional longevity of existing gothic bindings to the ‘restrained’ use of adhesive on the spine. However, Douglas Cockerell (1901, p. 152) advocates giving the spine ‘a thick coat of glue’ when lining heavy books. Diehl (1980 Vol. 1, p. 190) states that the hollow back is ‘one of the most commonest [sic] faults of construction’, but does not explain why. On the other hand, Middleton (1963) simply reports the historical use of recessed thongs with a hollow back to enable more throwup; he does not indicate whether this was a good or bad practice. Advice in the literature requires some level of experience to interpret it, and some statements in the literature reviewed are even technically incorrect2, all of which makes the advice unhelpful for learners. I felt an immediate kinship with an anonymous author who wrote in The British Bookmaker that

Vague generalities may always be used by theorists in describing a process of work, and they may suffice for those who know how to do it, and are consequently able to fill in the omissions of the unpractised and merely theoretical exponent of the craft, but for those who desire to learn, or for those who, being practised workmen, desire to extend their knowledge, vague generalities will not suffice. (1892-3, no page)

Clear and reliable information about linings is greatly needed. As Miller (2010, p. 100) rightly points out, ‘linings can sometimes be extremely damaging’. With that in mind, the starting point for my research was the well-known article by Conroy, ‘The Movement of the Book Spine’ (1987), in which he describes a fundamental engineering principle important for bindings – the tension and compression principle.

Mechanics of the book spine

When any material bends, it has a tension side and a compression side (Fig. 1). Material in the tension layer will spread apart, while material in the compression layer will, as the name suggests, compress. This principle applies when a book is opened (Figs. 2, 3). A book spine has a tension and a compression layer. The tension layer consists of the spine folds of the text block (the folded edges of the text sections) and the material adhered directly to them. All materials placed on top of this layer are in compression.

Fig. 1 – The action of a bending object, demonstrating the tension and compression principle. Original drawing by Paula Steere; graphic rendering by The Book & Paper Gathering

Figs. 2, 3 – Tension (A) and compression (B) layers: the tension and compression principle applies to any open book, regardless of the binding type. Photography by Paula Steere

When a book is opened, the movement at the spine folds is largely imperceptible, but its importance should not be underestimated. Too much movement could contribute to poor opening and structural failure. Each of the spine folds moves with some degree of independence. This localised movement can be thought of as a series of flexible mini-bends (McIlvaine 2017a), as illustrated in Figure 4. These mini-bends have different radii and are affected by adhesives and sewing. (Sewing structure will be discussed in Part II.) They create localised strain (deformation) (Fig. 5), and it is this localised strain that causes the spine to fail.

Fig. 4 – Imperceptible movement of the spine folds in an opened book. Original drawing by Paula Steere; graphic rendering by The Book & Paper Gathering

Fig. 5 – Localised bending at each spine fold increases strain. Sewing and adhesives also create non-uniform stiffness; for example, adhesive shrinkage pulls paper down and flattens. Original drawing by Paula Steere; graphic rendering by The Book & Paper Gathering

Linings also move, and these shearing forces contribute to the deformation of the spine folds. The choice of lining materials affects the extent of the deformation. Miller (2010, p. 100) defines linings as a support that allows the spine to flex ‘without the sewn sections parting’. While in reality we cannot eliminate deformation entirely, informed choices can minimise it.

A fundamental aim of spine linings, therefore, is to minimise deformation at the interface between the text block and the first layer (the spine folds and first lining). We can achieve this by minimising the spreading apart (deformation) of the spine folds in the tension layer. Based on principles of mechanical engineering, the first step is to place a stiff and thin first lining against the text block to minimise movement. All subsequent materials, including further linings, adhesive layers and covering material, should ideally be less stiff than this first lining. This is not always an easy task. The model in Figures 6, 7 and 8 shows how adhering a stiff material to a flexible material affects the strain distribution in a composite material. Acetate, a thin and relatively stiff material, is adhered to a sponge (Fig. 6, 7). When the sponge is bent, the stiffness of the acetate minimises movement at the acetate/sponge interface (Fig. 8A). This interface is in the tension layer, and the higher stiffness of this layer drives deformation into the less stiff outer sponge (compression layer), as shown in Figure 8B. This is a simplified model of a book spine, which is also essentially a composite of several materials.

Figs. 6, 7 – A stiff material (acetate) adhered to a less stiff material (a sponge). Photography by Paula Steere

Fig. 8 – The stiffness of the acetate reduces (but does not eliminate) the spreading apart (tension) of the sponge at A. This can be a model of the spine fold – first lining interface. When the tension layer is stiffer, the deformation is driven into the compression layer at B, which represents the exterior book spine and covering material. Photography by Paula Steere

Of course, driving deformation to the outer spine layers could potentially damage the spine leather and tooling of a tight back (Franck 1941, p. 7). We also do not want to prevent movement entirely, as the spine needs to flex to some degree for the book to open well. The required degree of spine stiffness is also affected by other variables, such as the thickness of the sewing supports and type of sewing structure. Nevertheless, the tension and compression principle applies equally to all books and offers tangible criteria on which to base spine lining decisions. However, this is only the first part of the story. We must also understand the performance mechanics of the conservation spine lining materials themselves – paper, linen, cotton and adhesives.

The mechanical properties of spine lining materials determine their use

Research indicates that paper lining materials are not robust enough for book spine linings. In 1708, Zeidler wrote in his book on the philosophy of bookbinding that ‘The French do not care to glue anything on the spine. Some glue only paper strips on, putting everything slovenly over and believing they have come just as far [as putting parchment or linen cloth on neatly and exactly]’3 (p. 78). Szirmai (2001, p. 196) interprets these sentiments by saying that Zeidler ‘castigates’ French bookbinders for using paper linings in gothic books.

Conroy (1987, p. 4) supports the case against placing paper on the spine. He warns that paper is prone to breaking when stretched (due to tension) and buckles easily when compressed. McIlvaine (2017a) concurs, saying that while paper is a stiff material, it is not strong enough and is susceptible to tearing. Any imperfection would propagate easily. Paper has an irregular and random structure, which determines its physical properties (Corte and Kallmes 1961, p. 14–15; see Fig. 9). Its relative weakness could be attributed in part to this formation.

Fig. 9 (left) – Paper consists of randomly arranged separate fibres. Fig. 10 (right) – Fabric consists of twisted, woven and secure threads. Drawings by The Book & Paper Gathering

Fabrics tend to have a stronger base material and structure than paper (Fig. 10). For spine linings, the important properties of fabrics are tenacity (stress at break), extensibility (degree of stretch before breaking) and modulus (resistance to stretch). Tenacity is the term used to describe fibre strength; extensibility contributes to fold endurance; and modulus contributes to stiffness. These properties are determined by the fibre structure of the raw material. Linen is made from the bast stem fibres of Linum usitatissimum. The thick-walled, tube-like cells with small lumens or canals (hollow spaces) (Landi 1998, p. 22) are arranged in bundles, as shown in Figure 11a. Cotton, meanwhile, is made from the seed hair of Gossypium herbaceum and Gossypium hirsutum. Cotton fibres are very different from linen, forming single hollow and flat cells with a large lumen (Landi 1998, p. 21; Fig. 11b).

Fig. 11 – a: A cross-section of thick-walled linen cells arranged in bundles. b: Cross-sections of thinner, flatter cotton cells. Original drawing by Paula Steere; graphic rendering by The Book & Paper Gathering

The thick walls and bundle arrangement of linen cells make linen a stiff and strong material. However, the thick cell walls lower its fold endurance and make it prone to breaking when repeatedly folded in the same place (UAL, no date), because thicker walls undergo more strain when bent. This is analogous to bending a piece of cardboard versus a piece of paper – there will be more damage (deformation) to the cardboard because of its thickness. The thicker a material, the stiffer it becomes when bent due to the neutral axis principle (McIlvaine 2017c), illustrated in Figure 12. This principle states that when a material is bent, there is no tension or compression at the centre line, but deformation increases with distance from this central plane.

Fig. 12 – Neutral axis principle: when a material is bent, the centre plane has zero tension or compression; tension and compression increase with distance from this zero axis. Original drawing by Paula Steere; graphic rendering by The Book & Paper Gathering

Linen also has less extensibility than cotton and will break more easily when stretched. Cotton has higher fold endurance than linen due to its structure: thin walls and a large lumen enable it to collapse on itself, reducing thickness locally and decreasing strain when folded (as per the neutral axis principle). These properties have been confirmed with data from fold endurance and mechanical strength tests published in the well-known books Conservation of Leather and Related Materials and The Textile Conservator’s Manual (Tables 1 and 2).

The data in Table 2 shows that linen is, on average, stronger than cotton because of its higher tenacity. Linen also has a much higher initial modulus (resistance to extension) than cotton, making it the stiffer fabric and a good candidate for a thin, stiff first lining. The less stiff cotton is a good second lining because of its higher fold endurance, and can be used to reattach boards if needed (more on that shortly).

In addition to fibre composition, the orientation of the yarns also affects the mechanical properties of fabric that are relevant to this spine lining design. Warp yarns (lengthwise grain, parallel to the selvage edge) stretch less (are stiffer) because they have a higher modulus than weft yarns (crosswise grain, perpendicular to the selvage edge). Warp yarns are more tightly twisted, and hence stronger (Hackler 2006), than weft yarns. They are tightly stretched during the weaving process (The Taunton Press, no date) to allow the more loosely wound weft yarns to be woven between them. I confirmed the higher stiffness of warp yarns by pulling the fabrics the same distance in both directions. Under tension, weft yarns stretched visibly more than warp yarns. Therefore, additional stiffness in the first lining can be gained by positioning the linen with the warp yarns across the spine width, which minimises the spreading apart of the spine folds. It is worth noting that the bias grain direction has been considered the strongest because the most fibres are available; however, in this orientation, the fabric also deforms easily, and therefore, could be susceptible to damage (Fig. 13).

The properties of adhesives should also be considered. Conroy (1987, p. 4) says that an adhesive does not need to be flexible; flexibility is required only if too much adhesive is used. McIlvaine (2017b) further reminds us of the neutral axis principle (Fig. 12) – thin layers of adhesive are desirable because thin materials strain less when bent.

However, the adhesive must still be thick enough to be effective. I carried out adhesion tests on aero linen and aero cotton swatches to find the smallest amount of adhesive that still yielded strong adhesion between the two fabrics. A 1:1 mix of Evacon R and wheat starch paste (1:3 wheat starch to water v/v) was used for additional strength. A thin, medium and thick layer of adhesive was applied with a brush to clear acetate to serve as a quantity guide. The adhesive was then applied by brush to both cotton and linen swatches to be adhered together. The linen was positioned on the cotton swatches so that both the warp and weft orientations were tested in the direction of the shearing force. The cotton was not used in the bias direction. The fabrics were pressed with a bone folder and air-dried for a minimum of two hours (Fig. 14). There was no adhesive failure or obvious strength difference between the thin, medium and thick coats of adhesive mix when pulling them apart with my hands under maximum manual shearing force (Fig. 15). Therefore, the thinnest coat of adhesive could safely be used to minimise deformation and cumulative stiffness without compromising adhesion strength.

Fig. 13 (left) – Bias grain under tension deforms easily. Fig. 14 (right) – Lining design adhesion test swatches: linen and cotton adhered together with thin, medium and thick layers of adhesive. Pencil arrows show the weft (crosswise) direction. Photography by Paula Steere

Fig. 15 – Manual adhesive strength test: pulling fabrics to mimic shearing forces experienced by spine linings when a book is opened. Photography by Paula Steere

Putting the principles into practice: spine lining design

To review, for optimum functionality and durability, spine linings should minimise deformation at the interface between the spine folds and first lining material. We can achieve this by placing a stiff and thin first lining against the text block to minimise movement and keep the spine folds from spreading apart. All subsequent materials, including further linings, adhesives and covering material, should ideally be less stiff than this first lining.

For the spine lining design based on this research, aero linen should be used as the first lining, with the stronger, stiffer warp yarns placed across the spine width from shoulder to shoulder (Figs. 16, 17). Thinner, less stiff aero cotton, with its greater fold endurance, should be used as a second lining to reattach the boards. (If the boards are still attached, a second lining may not be necessary at all.) To minimise cumulative stiffness in the outer (compression) layer, positioning cotton in the bias direction could be a good choice, since this is the least stiff of the yarn orientations. Additionally, all subsequent linings, such as the paper used to smooth an uneven tight back spine, should be kept to an absolute minimum, with thin adhesive layers throughout. For heavy text blocks, I use WSP and ethyl vinyl acetate (EVA) mix (1:1) to adhere the linen to the spine folds, and I use wheat starch paste alone, without EVA, for materials in the compression layer (to reduce cumulative stiffness). For standard-sized books that are not very heavy, I use wheat starch paste on its own throughout the process; however, I have not tested swatches of wheat starch paste without EVA.

When adding more linings after the linen (and cotton, if reattaching boards), check opening characteristics after each lining has dried thoroughly. Paper linings can be omitted altogether in some instances; for example, if the tight back spine is even, in a case binding, or in a situation where throwup does not require additional control. Keep in mind the engineering principles discussed in this article when deciding on the number of additional linings and the choice of lining material: the compression layer (everything after the first linen lining) should ideally be less stiff than the tension layer. Thinly pared leather, discussed below, can be used instead of paper for additional linings to reduce stiffness.

Fig. 16 – Spine lining design based on the tension and compression engineering principle and the mechanical properties of spine lining materials. Original drawing by Paula Steere; graphic rendering by The Book & Paper Gathering

Fig. 17 – The spine of a leather reback just before reattaching the boards. On the spine is the first lining – aero linen with warp yarns running shoulder to shoulder. It has been adhered directly against the text block spine folds. The fabric above and below the spine is aero cotton and was adhered directly to the linen to reattach the boards. Photography by Paula Steere, courtesy of the College of Arms Library, London

The  quarter leather tight back in Figure 18 has a heavy parchment text block, and I wanted to experiment with traditional leather linings because the mechanical properties of leather are excellent for the compression layer of my spine lining design: it is strong, but not stiff, because of the structure of its main component, the protein collagen. The linings in this image are made of thinly pared leather. I have used a graduated lining technique, which I was delighted to discover during my research, to further minimise stiffness in the compression layer. The graduated lining structure is attributed to Francis Bedford, a nineteenth-century bookbinder acclaimed for the ‘even strain’ (Anonymous author 1893, p. 58) of his bindings. The rationale for the graduated lining structure is that the stiffness needed for a book to open well at any given place varies. The centre of the spine takes the greatest strain and should be the stiffest, while less stiffness is required near the beginning and end sections of the text block (McIlvaine 2017b). Subsequent linings after the first one are ‘a little further in’ (Anonymous author 1893, p. 58), stopping a little short of the shoulders, as illustrated in Figure 18.

I also adapted the graduated lining technique to the leather covering material to reduce overall stiffness. The leather over the centre spine folds is thicker than that over the beginning and end spine folds. This was achieved through tapered paring, as shown in Figures 19 and 20. A comparison of opening characteristics before and after treatment can be seen in Figures 21 and 22.

Fig. 18 – The graduated lining structure attributed to Francis Bedford’s workshop. According to the author in The British Bookmaker, every lining after the first is ‘a little further in’, stopping short of the shoulder. The text block of this book was made from heavy parchment, and in addition to using the spine lining design described in this article, I wanted to experiment with traditional leather linings because of their strength. Photography by Paula Steere, courtesy of the College of Arms Library, London
Fig. 19 – Adapting the graduated lining technique to leather paring. Original drawing by Paula Steere; graphic rendering by The Book & Paper Gathering
Fig. 20 – Paring in progress: the thickness of the leather under the central black line will remain as is, and the leather will be pared to taper towards F and B, which indicate the width of the text block. Photography by Paula Steere
Fig. 21 – Opening characteristics of the book from Fig. 18 before treatment. Photography by Paula Steere, courtesy of the College of Arms Library, London
Fig. 22 – The same book after treatment, with improved opening characteristics. Note that some of the improvement is also due to repairs in the text block. Photography by Paula Steere, courtesy of the College of Arms Library, London

In conclusion, exploring the forces present in a book spine and the mechanical properties of familiar book conservation materials has helped me to overcome the ‘vague generalities’ found in the literature. Understanding mechanics and materials enables the conservator to take advantage of engineering concepts that offer tangible criteria on which to base spine lining decisions. I discovered several hidden gems along the way, such as Zeidler’s ire, Bedford’s famed workshop, and, of course, that anonymous kindred spirit from The British Bookmaker for whom vague generalities would not suffice.

Special thanks to my colleagues at the College of Arms, Becky Tabram and Christopher Harvey, head of conservation, who encouraged and allowed me to explore these ideas while I was a conservator there. Their experience and knowledge of books and our ongoing conversations and practical experiments in the workshop were invaluable.

Footnotes

1. I reviewed approximately 36 books and articles, spanning the years 1658 (in a 1977 translation) to 2017.

2. Technical statements in the literature were cross-referenced with a mechanical engineer, Lee McILvaine, for scientific accuracy. This research document is available upon request.

3. Translation by Isana Skeete (2017). No published English translation of this book could be found.

Bibliography

Anonymous author (1892–3) ‘Editorial’, The British Bookmaker, 6, no page number.

Anonymous author (1893) ‘On forwarding’, The British Bookmaker, 7(75), p. 58.

Cockerell, D. (1901) Bookbinding: The classic Arts and Crafts manual. New York: Dover Publications.

Conroy, T. (1987) ‘The movement of the book spine’, The Book and Paper Group Annual, 6, pp. 1–22.

Corte, H. and Kallmes, O.J. (1961) Statistical geometry of a fibrous network. New York: Regis Paper Company.

Diehl, E. (1980) Bookbinding: Its background and technique (2 vols). Rev. edn. New York: Dover Publications.

Franck, P. (1941) A lost link in the technique of bookbinding and how I found it. Gaylordsville, Connecticut: The author.

Hackler, N. (2006) Understanding fabric grain. Rev. edn. Gainesville: University of Florida.

Landi, S. (1998) The textile conservator’s manual. Butterworth-Heinemann: Oxford.

McIlvaine, L. (2017a) Email to Paula Steere, 8 April.

McIlvaine, L. (2017b) Conversation with Paula Steere, 13 April.

McIlvaine, L. (2017c) Email to Paula Steere, 26 April.

Middleton, B.C. (1963) A history of English craft bookbinding technique. Hafner Publishing: London.

Middleton, B.C. (1998) The restoration of leather bindings. Rev. Ed. Delaware, London: Oak Knoll Press, The British Library.

Miller, J. (2010) Books will speak plain – A handbook for identifying and describing historical bindings. Michigan: Legacy Press.

Silverman, R., Cains, A., Ruzika, G., Zyats, P., Reidell, S., Primanis, O., Puglia, A., Anderson, P., Etherington, D., Minter, B., Brock, D., Zimmern, F. (2006) ‘Conservation of leather bookbindings: a mosaic of contemporary techniques’, in Kite, M. and Thomson, R. Conservation of leather and related materials. Oxford: Butterworth-Heinemann, pp. 225–243.

Skeete, I. (2017) Translation of passage in Zeidler, J. (1708), 17 May.

Szirmai, J.A. (2001) The archaeology of medieval bookbinding. Burlington, Vermont: Ashgate.

The Taunton Press (no date) ‘Grainline’. Available at: http://www.taunton.com/threads/pdf/grainline.pdf (Accessed: 16 April 2017).

University of the Arts London (no date) Sustainable fibres and fabrics: the first steps towards considered design. Available at: http://sff.arts.ac.uk/Fibre%20Introduction/linenintro.html (Accessed: 5 February 2017).

Zeidler, J.G. (1708) Buchbinder-Philosophie oder Einleitung in die Buchbinder-Kunst. Hall im Magdeburgschen: in Rengerischer Buchhandlung.

Paula Steere has an education background and was head of Art and Design in a secondary school in London before retraining in book and archival conservation at Camberwell College of Arts from 2015 to 2017. She has worked at the College of Arms, the Wellcome Collection, the Senate House Library, the London College of Fashion Archive, the Victoria and Albert Museum and UCL Special Collections. Currently she is a preventive conservator, volunteer coordinator and grant writer at the Hershey History Centre, a nonprofit museum in Pennsylvania, US. She is also a book conservator in private practice.

Books On Books Collection – Ken Botnick

Books On BooksLeave a comment

“How does a book reflect a distinct way of thinking about a subject? How does the page become a dynamic landscape of visual and conceptual ideas?” So begins the description for a workshop run by Ken Botnick in 2017. His two works in the Books On Books Collection answer those questions with a resounding “This is how“.

Table of Contents (2020)

Table of Contents (2021)
Ken Botnick
Slipcased, boards with exposed sewn binding. Slipcase: H270 x W170 mm; Book: H265 xW185 mm, 56 pages.
Edition of 20, of which this is #5. Acquired from the artist, 3 May 2022.
Photos: Courtesy of the artist; Books On Books Collection. Displayed with permission of the artist.

Table of Contents has no table of contents. Instead the whole book is a meditation on a table of contents — that of James J. Gibson’s The Senses Considered as Perceptual Systems (1966). On the inside cover, Botnick characterizes Table of Contents as a “book-length visual/textual poem” and identifies the cento as its model. Cento is short for the Latin centonibus (“patchwork”) and describes the technique of appropriating others’ lines of verse to compose an original “collage” poem. Rather than lines from poems, though, Botnick has appropriated text from Gibson’s table of contents and figure labels.

Here is Gibson’s complete table of contents:

Gibson, The Senses Considered as Perceptual Systems, pp. ix-xiv. Internet Archive.

Here is Botnick’s selection of text:

Table of Contents
Compression waves from a vibratory event
How are associations between events detected?
The stationary information for seeing one thing through another
Radiation from a luminous source
The physical reality of speech
The diffusion of volatile substances
The development of selective attention
The superfluous appeal to memory
The consequences of inadequate information
The consequences of rigidity
The special consequences of light
Transmitted light and transparent surfaces
The structuring of light by means other than reflection
The structuring of light by alphabetic writing
The stable and unbounded character of the phenomenal visual world
The perception of chemical values in the sea
The inspired air
The beginning of a theory

But that is not how Botnick’s cento is presented. In calling it a “visual/textual poem”, Botnick is too modest. It is much more than visual/textual: it is visual, textual, auditory and haptic — and is so from the start, proceeding by contrasts and complements, provoking multi-sensory activity and responses.

First of all, the slipcase is more of a “slipsleeve” from which the spine protrudes for fingers and eyes to feel the exposed binding threads, the pattern of knots and the ridges of the gathered signatures. This is the sewn boards structure, credited to Gary Frost, more on that later. The spine and fore edge offer bright colors that contrast with the deeply black sleeve that displays three slanting parallel cutouts in the cloth, exposing the board it covers. The pattern those cutouts make will become a recurrent visual and tactile theme as the pages turn.

As the tightly fitting sleeve pulls away from the board-stiff book, they make a “shirring” sound together. As the front cover turns, the title page bows upward showing nine impressed parallel lines beneath the words “Table of Contents”, and when that page turns, it crackles and makes a shuffling sound as its edge drags across the following bright blue page.

Through that bright blue translucence, the pattern from the slipsleeve reappears but rearranged and multiplied into a zigzag spectrum of colors. The physical turning of the translucent page “exposes” that zigzag spectrum and the second line of text in this poem: “Compression waves from a vibratory event”. Gibson’s text refers to the perception of sound or physical vibrations, and Botnick poetically overlays this with his selection of papers and introduction of zigzag waves of color. The zigzag pattern and its rounded elements, which on some pages are scattered, elongated, cross-hatched or sharp-edged, contribute a recurrent visual syncopated rhythm through the book. Toward the end, the zigzag moves into a more consistently vertical and angular, almost helical, appearance.

First leaf turned, second leaf turning, third leaf revealed.

Zigzag pattern scattered. Zigzag pattern become helical.

To deliver other visual and haptic effects, Botnick prints his translucent papers sometimes only on their reverse sides, sometimes on both, sometimes to the point of opacity as with the first leaf and other times to the point of transforming the colors about to appear on the next sheet beneath as with the second and third leaves. Of course, this changes the feel of the sheet from one side to the other. Botnick also uses six different paper types (including one with a watermark designed for this edition and made at Dieu Donné Paper). The variety in printing and papers introduces additional tactile and visual rhythms: slick and matte, smooth and rough, dark and light, etc. Again, proceeding by contrasts and complements, provoking multi-sensory activity and responses.

Visual effects achieved by printing on both sides of translucent paper layered over fine print paper.

Visual effects achieved by printing translucent paper to near opacity on one side, spot printing on the other side and layering that sheet over a translucent paper printed on one side.

Variation of paper types.

The sewn boards structure, executed by Emdash studio member Robin Siddall, offers the most effective means of achieving the sensory effects intended with the variety of papers, ink colors and printing techniques, as well as delivering a lay-flat binding. Each four-page signature consists of two separate sheets glued to the inner edges of a narrow folded card (the board) sewn and linked to the boards of the signatures before and after. The card used for those hinges is a Japanese washi called Moriki, known for its folding strength and colors, but how particularly apt those multiple hinges and colors are for this patchwork poem.

Detail of an open signature exposing the thread sewn through the board and showing the leaves glued to the edges of the board.

Gibson defines the haptic system as that “by which animals and men are literally in touch with the environment” (p.97). On the penultimate double-page spread, Botnick reveals the environment that touched his “book-length visual/textual poem” into existence: one of pandemic, isolation, violent exposure of institutionalized racism, the “Big Lie” and insurrection. Set in the now familiar zigzag pattern, the revelatory text annotates the lines of appropriated text and the prints, connecting both with the environment and the meditation on perception. Botnick’s book is certainly a distinctive interweaving way of thinking about these threads.

It is telling that Table of Contents ends with black and gray, the colors that dominate the other work in the collection: Diderot Project (2015), which presents this pronouncement from Odilon Redon:

Even without the prismatic range of colors in Table of Contents, Botnick’s Diderot Project (2015) may outstrip the former in the number of ways in which Botnick makes not only the page but also the codex itself “become a dynamic landscape of visual and conceptual ideas”.

Diderot Project (2015)

Diderot Project (2015)
Ken Botnick
H290 x W194 mm, 150 pages. Edition of 70, of which this is #32. Acquired from the artist,
Photos: Courtesy of the artist; Books On Books Collection. Displayed with permission of the artist.

Clearly, like Table of Contents, this work is a “book-length visual/textual poem”, so it offers some insights on the book artist’s favorite rhymes, rhythms, metaphors, techniques and themes. First and foremost is his taking a literary work as his muse. With Table of Contents, it is James J. Gibson’s psychology book; in this case, it is Denis Diderot’s multi-volume Encyclopédie (Encyclopedia), a decades-long project with Jean le Rond d’Alembert and 138 other contributors. Nodding to the multiple volumes of the Encyclopedia, the artist refers to the sections of his work as Volumes 1, 2 and 3, although they are bound as one binding. The three volumes’ titles follow the Encyclopedia‘s overarching categories in its “System of Human Knowledge”: Memory, Reason, and Imagination. Digitally captured images from the Encyclopedia‘s plate volumes abound.

Table of Contents

Diderot Project, however, is not a condensed version or description of the Encyclopedia. Like literary works of ekphrasis whose words meditate on a visual object, Diderot Project is book art that meditates — inversely — on a literary work. The cover to Diderot Project does not show its name where the title is expected, rather it shows the name of its object of meditation. And it displays that name in a distinctive monumental way.

The front cover’s silver slab serif italic letters in all caps on textured, triple-dyed flax paper and the back cover’s diagram in the same palette strike chords that reverberate throughout the work. The chords are both obvious and subtle. Immediately, with a pattern of silver-gray compasses and directional stars, the doublures repeat the cover’s black and silver notes but on a less textured paper. Curiously the fly leaves of the doublures are not really fly leaves because they are pasted at their fore edges to separate leaves of black paper: a subtle hint to look beneath the surface, inquire into the mechanics. (An irresistible side note on the mechanics of the binding: the binder Daniel E. Kelm, in tipping the black fly leaf to the outer printed one, extends the fly leaf further into the book as a tipped-on hinge inserted through the first two signatures. The detailed image below on the right shows the hinging edge of the fly leaf between the signatures.)

L-R: Inside back cover, doublure with compass and directional star motif; Inside front cover, doublure leaf anchored to fly leaf; Binding detailed view of hinging edge of fly leaf extending between signatures.

Following that almost-Chinese fold of a flyleaf, the half-title drops any pretense of hinting. Turning the half-title with its 3×4 grid of black, brown, tan and gray squares on translucent paper reveals that the squares have been created by printing in silver, copper, light brown tint and no ink on the reverse. Underneath the half-title leaf lies another black page with the recurring silver-gray image of four buckets linked by their handles. The pattern of buckets is parallel to the interlinked image of compass and directional star on the doublures. It is another subtle hint: this time, to look at patterns for their similarities and differences arising from the mechanics of effects, to consider the commonality of tools whether at the low or high end of culture.

L-R: Half-title on translucent paper; inked reverse of half-title and the interlinking buckets.

If this reaction to the prelims seems a stretch, then the following run of folios surely validates it. Not only does the text articulate the parity of craft and tools (métier) with art and science, the watermark hand gestures to it, then the watermark hand joins its mirror image “to tie” the knot of the binding thread, and then the second watermark hand joins its printed mirror image at the same point. These six pages enact parallels of similarities and differences.

The layering of translucent paper printed on one or both sides, which also occurs in Table of Contents, is another of Botnick’s favorite techniques. He has even delivered a lecture at the Getty Research Institute entitled “Transparency as Metaphor“. Botnick’s use of it in the sequence below invites the reader/viewer to meditate with him on “the nature of craft, tools, memory, and imagination, while provoking questions about authorship in artists’ books”.

Running across the four pages of the two leaves of UV Ultra Clearfold, the enlarged present, past and future letters call on perception, memory and imagination to decipher the name: Diderot, emerged and submerged. However large his name is cast, though, is Diderot the author? By bracketing these transparencies with an image of a manufactory or workshop and a crowd of listeners and observers with pens poised, Botnick evokes the other 139 contributors to the Encyclopedia and his own host of collaborators, including Kelm (binding), Paul Wong (papermaking) and, importantly the Emdash studio (Catherine Johnson, Ben Kiel, Karen Werner and, in New Delhi, Ira Raja).

Tools, the workplace and studio lie at the heart of the Diderot Project‘s second volume, which boasts the following complex foldout which in itself validates Roland Barthes’ statement from his essay on the Encyclopedia‘s plates: “The object is the world’s human signature”.

Sensation, perception and the natural world lie at the heart of the third volume, and here is another of Botnick’s favorite techniques: typographic distinction. The right-side up text on the verso page is set in Walbaum, as is every instance of Diderot’s text. The upside down text on the verso and all the text on the recto are set in Trade Gothic, as is the case for more contemporary authors (Michel Foucault and Walter Benjamin, respectively, in these instances). Note how Foucault’s upside down text reflects the action in the image of the camera obscura, and picks up the theme of perceptual flipping initiated with the watermark hand in Volume 1 and Diderot’s enlarged name across the translucent pages in Volume 2.

Both Table of Contents and Diderot Project reward revisiting for this kind of close reading, close looking, close fingering and close listening. Close comparison and contrast as well because together they answer “How does a book reflect a distinct way of thinking about a subject? How does the page become a dynamic landscape of visual and conceptual ideas?”

Further Reading

“Notes on ‘Inverse Ekphrasis’ as a way into book art“. 17 June 2022. Bookmarking Book Art.

“Artist Books: From Idea to Form – Workshop by Ken Botnick“. 18 March 2017. Lawrence Art Center, Lawrence, Kansas. Accessed 2 June 2019.

Botnick, Ken. 23 April 2015. Transcription of talk given as the annual Enid Mark Lecture. Smith College.

Botnick, Ken. 1 October 2015. “Diderot Project: Making the Book to Discover my Subject“. Boston Athenaeum. Video. Accessed 1 June 2019.

Diderot, D., & Alembert, J. L. R. 1967. Encyclopédie ou dictionnaire raisonné des sciences des arts et des métiers. Stuttgart- Bad Cannstatt: Friedrich Fromann.

Frost, Gary. 2012. Adventures in Book Preservation. Coralville, IA: Iowa Book Works. See “Sewn Board Bookbinding More than a Thousand Years Later”.

Gibson, James J. 1966. The Senses Considered as Perceptual Systems. Boston: Houghton Mifflin.

Gibson, James Jerome. 1950. The Perception of the Visual World. [With illustrations]. Riverside Press: Cambridge, Mass.

Books On Books Collection – Gary Frost

Books On BooksLeave a comment

A Crafted Typology of the Codex (2021)

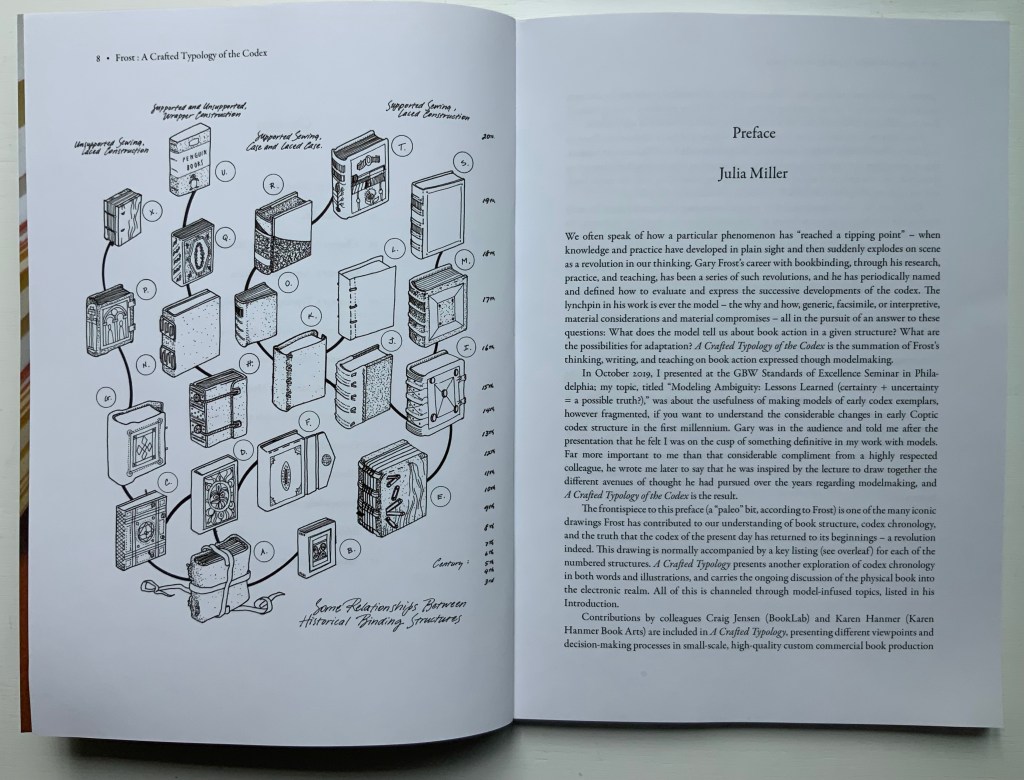

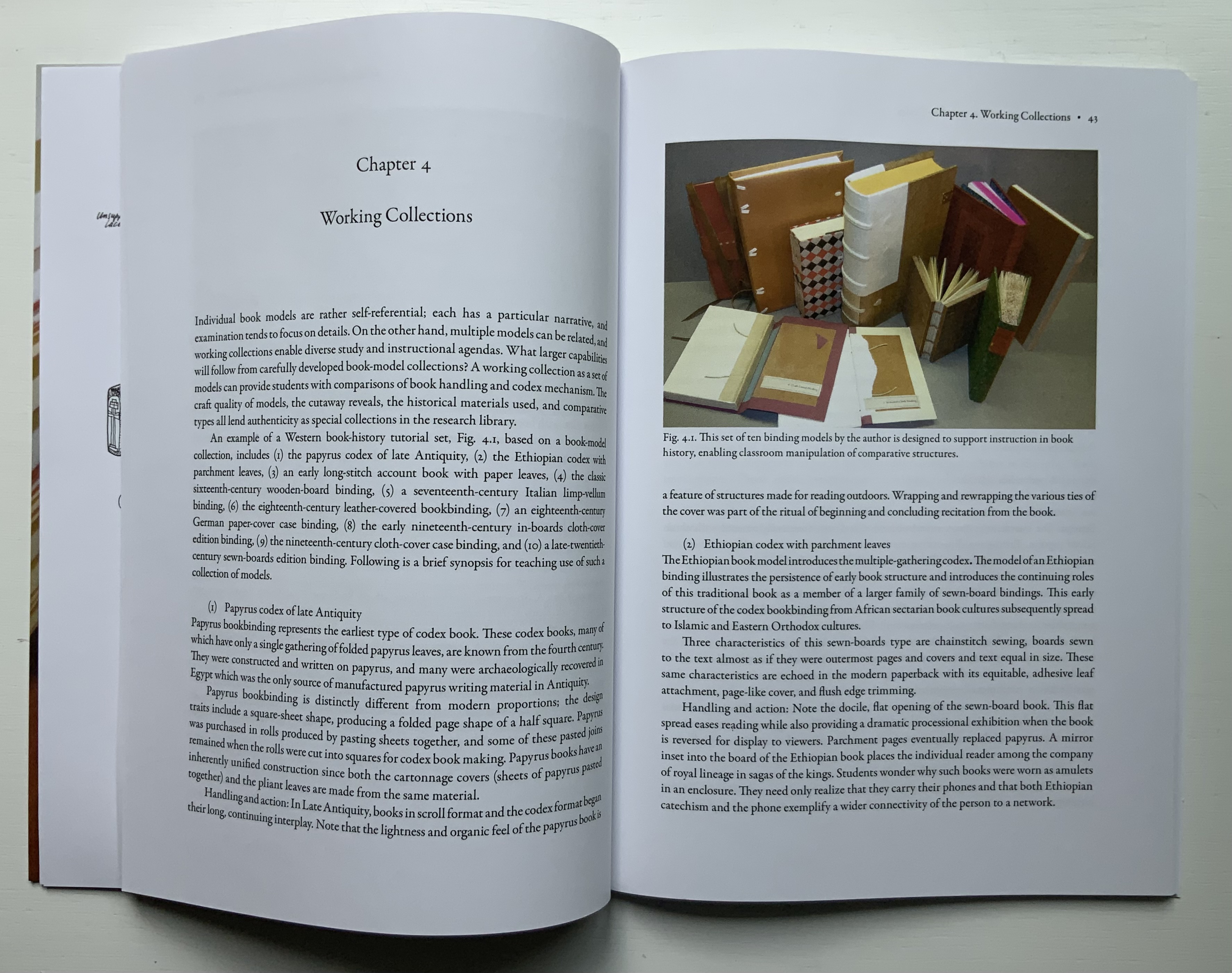

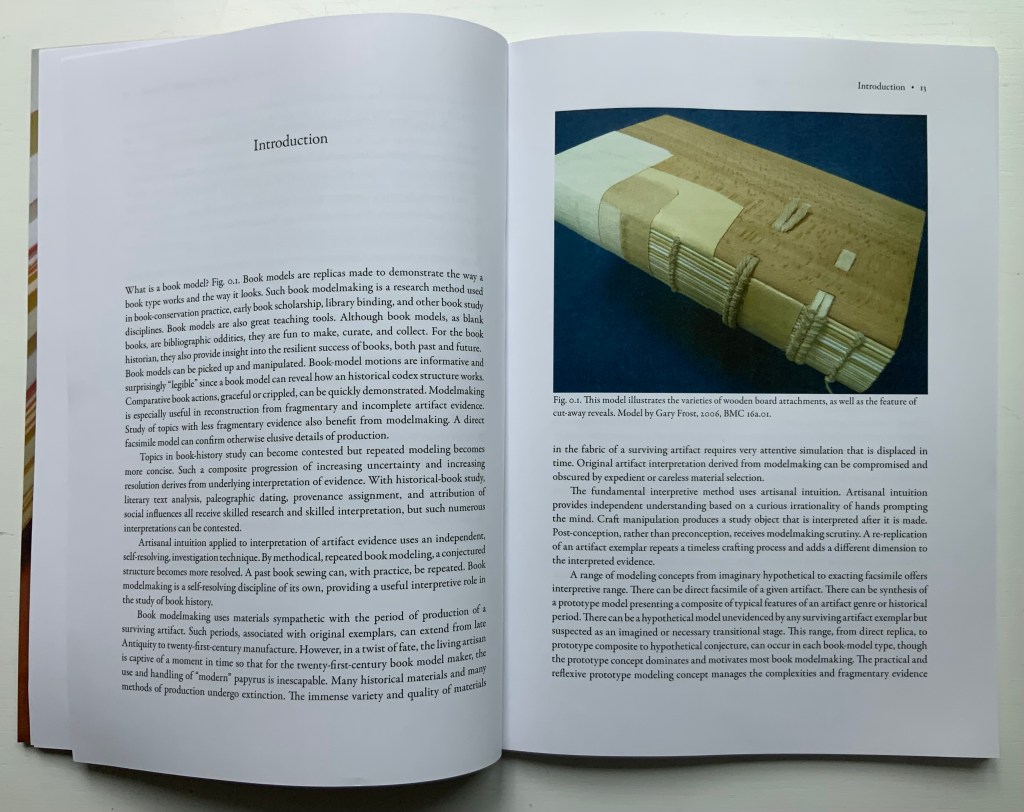

A Crafted Typology of the Codex: Book Modelmaking as an Approach to Material Book Study (2021)
Gary Frost
Paperback perfect bound. H255 x W180 mm, 104 pages. Acquired from Alan Isaac Rare Books, 14 February 2022.
Photos: Books On Books Collection.

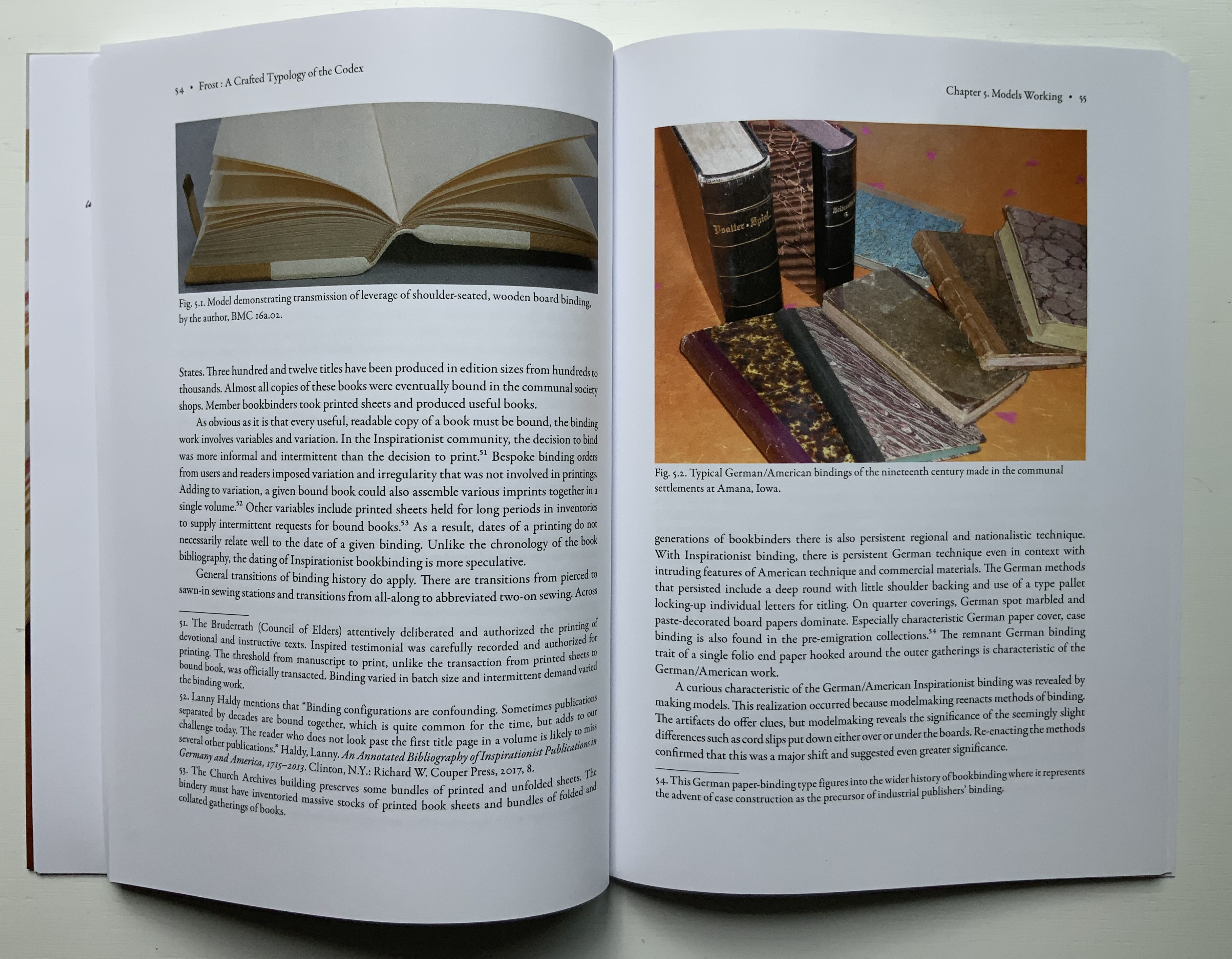

This recent volume from Gary Frost contains some previously published content from the two other works in the collection (see below), but the new material makes it worth re-reading that content and being reminded to revisit the two works for what is not re-published here. The diagram below, providing an historical overview of types of codices and their relationship, is also worth keeping close to hand when reading other reference works (see Further Reading).

Adventures in Book Preservation (2012)
Future of the Book: A Way Forward (2012)

Adventures in Book Preservation (2012)
Gary Frost
Paperback saddle-stitched. H278 x W215 mm, 68 pages.
Future of the Book: A Way Forward (2012)
Paperback saddle-stitched. H280 x W215 mm, 98 pages. Both acquired from the author, 22 July 2012.
Photos: Books On Books Collection.

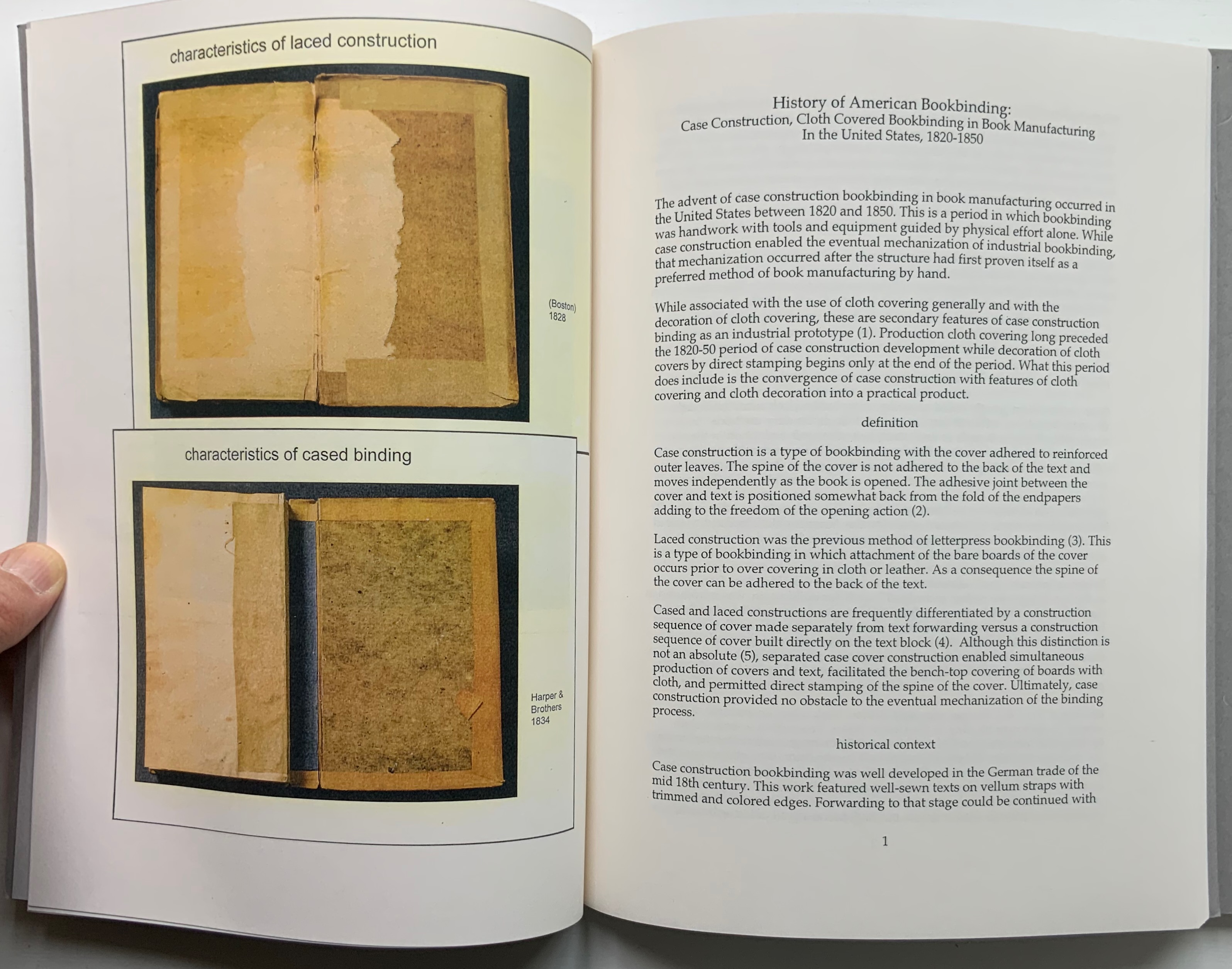

Sample pages from Adventures in Book Preservation (2012)

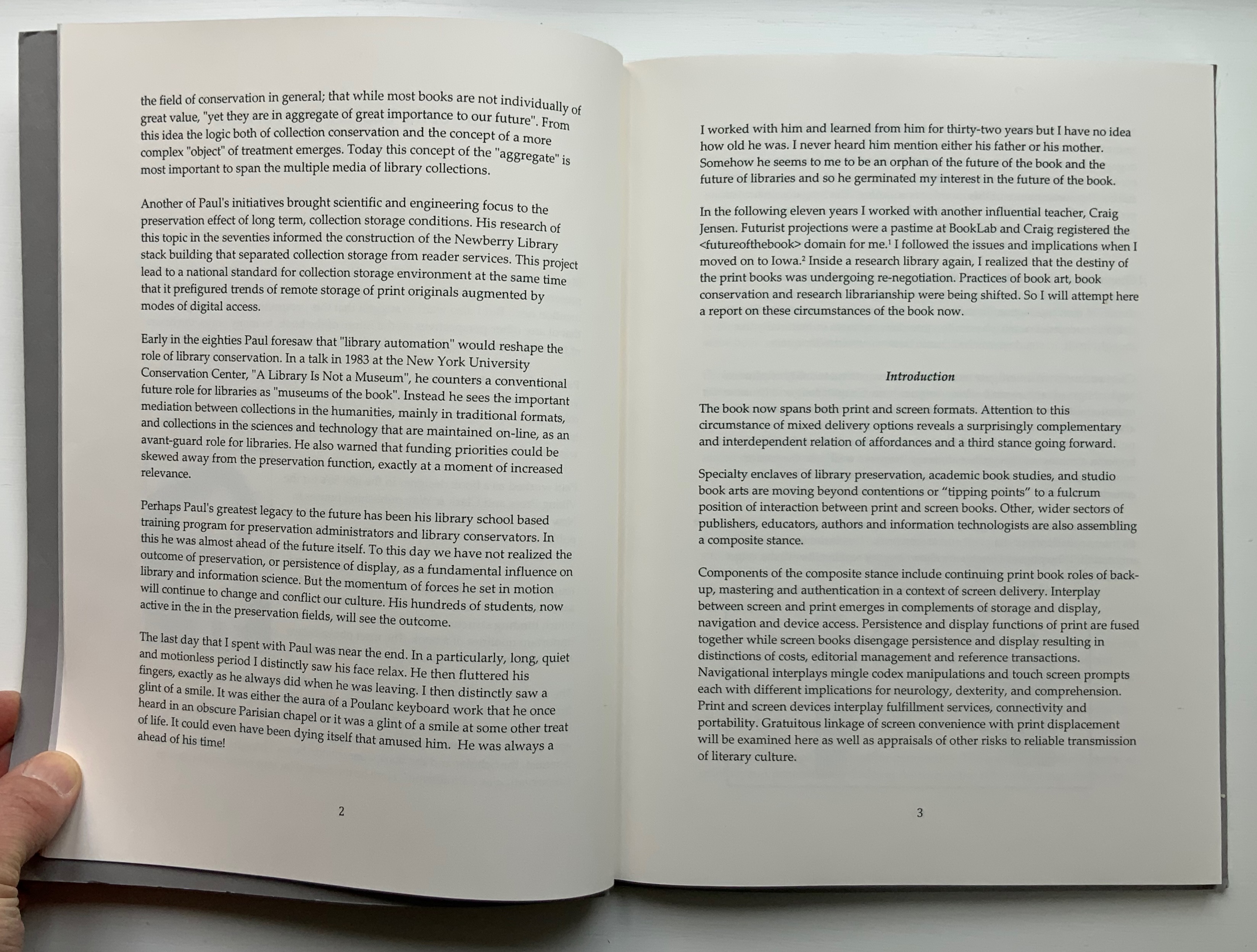

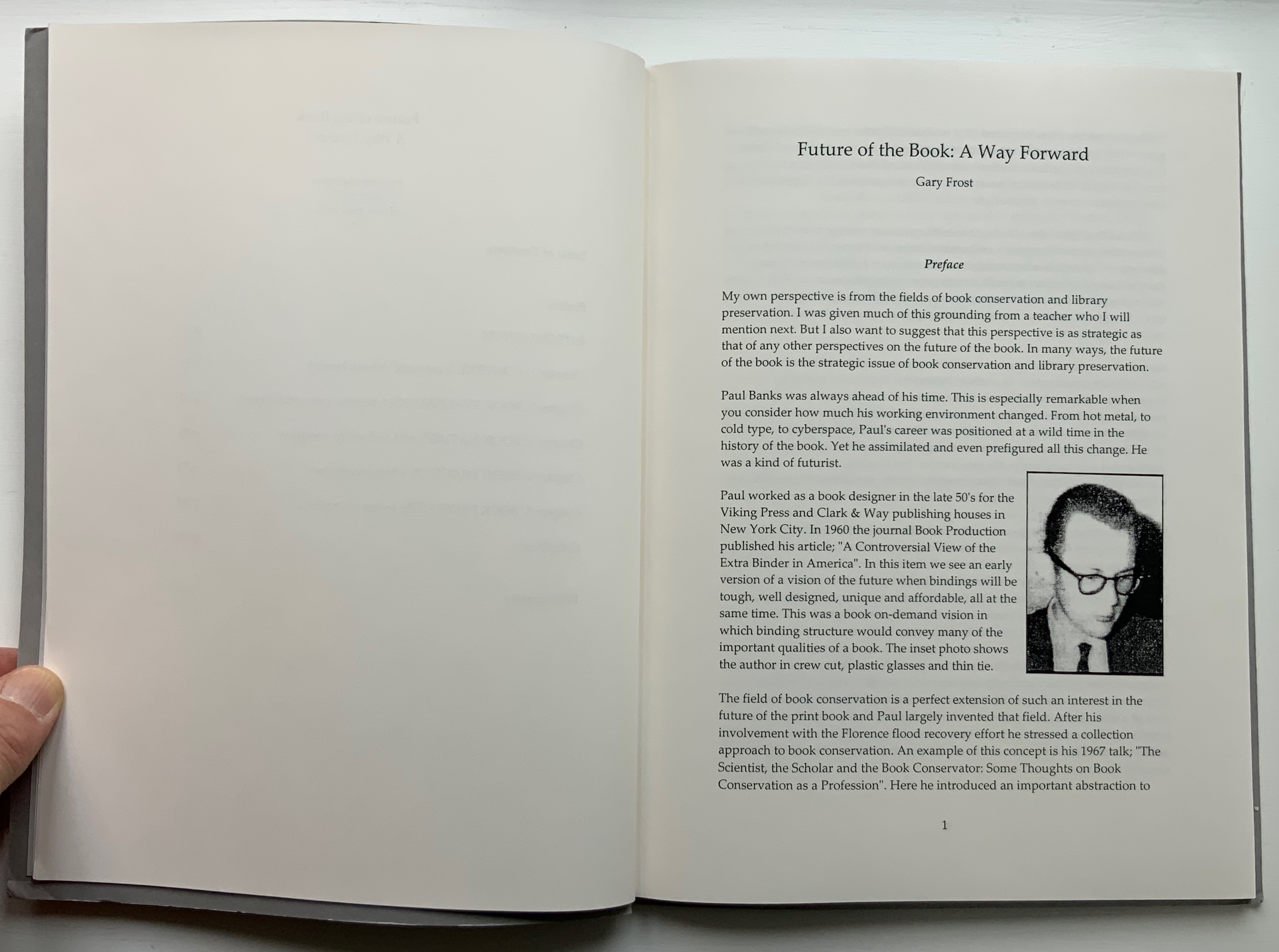

Sample pages from Future of the Book: A Way Forward (2012)

Further Reading

“Klaus Groh and Hermann Havekost, Artists’ Books / Künstlerbücher Buchobjekte / Livres d’Artistes / Libri Oggetti (1986)“. 2 July 2021. Books On Books Collection. Showing a four-way codex.

“Hedi Kyle’s The Art of the Fold: How to Make Innovative Books and Paper Structures (2018)“. 24 September 2018. Books On Books Collection.

“Claire Van Vliet, Woven and Interlocking Book Structures (2002)“. 8 August 2019. Books On Books Collection.

Burdett, Eric, and Constance Summers. 1983. The craft of bookbinding: a practical handbook. Newton Abbot: David and Charles.

Steere, Paula. “Materials and mechanics for book conservation: Part I. Engineering concepts for spine lining design“. The Book & Paper Gathering. Posted 9 June 2022 by thebookandpapergathering.org. Accessed 13 June 2022.

Books On Books Collection – Andrew Morrison

Books On BooksLeave a comment

Chroma Numerica (2019)

Chroma Numerica (2019)
Andrew Morrison
Perfect bound cased in quarter-hinged paper-on-board binding. H143 x W145 mm, 60 pages, printed on one side. Edition of 30, of which this is #17. Acquired from the artist, 2 September 2021.
Photos of the work: Books On Books Collection. Displayed with artist’s permission.

In the children’s book tradition, counting books and alphabet books often come paired. Chroma Numerica‘s partner appears with the same binding earlier in Andrew Morrison’s work below, and in both cases, the printing process is the real subject — not the learning of numbers or letters. From his wood type, Morrison rolls out oversized numbers 1-30 printed in a chromatic scale on Somerset Book 200gsm paper.

Provenance (2018)

Provenance (2018)
Andrew Morrison
Casebound with dustjacket. H152 x W155 mm, 9 foldouts, 6 leaves (including 1 trimmed short), 2 end leaves. Edition of 30, of which this is #28. Acquired from the artist, 2 September 2021.
Photos of the work: Books On Books Collection. Displayed with artist’s permission.

While Chroma Numerica and A-Z use printing processes to count and spell out their subjects, Provenance uses folds and stitching to conceal texts and images that reveal the making of the book itself. More than the other two books, Provenance requires “reading with the hands”. The two sequences below show the result and process — or the effect then cause — of needle perforation and wire stitching. In the first, the perforation can be seen along the right-hand edge, then along the left, and then in the middle of the unfolded image, which is annotated with a description of the printing process and paper. In the second sequence, the wire stitch can be seen in the gutter; then, with the two tabs pushed back, the German stitching machine comes in view, again annotated with a description of the printing process.

Provenance recalls those sets of binding models produced by Gary Frost, Karen Hanmer and others, but it may be too fragile for the constant reading with the hands that it would undergo as a teaching tool. It is more to be carefully and gently admired — a beautiful peacock admiring itself in the mirror of itself.

Two Wood Press A-Z (2013)

Two Wood Press A-Z (2013)
Andrew Morrison
Hardcover. Casebound glued. H180 x W155 mm, 56 pages. Edition of 30, of which this is an A/P. Acquired from the artist, 5 May 2020.
Photos: Books On Books Collection. Displayed with artist’s permission.

An inspired A-to-Z, with tongue in cheek evident in the material form as well as the text. At first, there seems to be no letter A, but closer inspection reveals the ampersand sneakily placed at the start of the alphabet on a page glued halfway up the pastedown. For the letter C, we have “chase” — the heavy steel frame used to hold type in a letterpress. Of course, the type held in a chase would read as in a mirror, and so “C. WADE.” and “HALIFAX.” do just that in their “paper” chase. E for embossing is, of course, embossed. The usually difficult search for a word or term beginning with X is not a problem for typophile and provides a self-defining demonstration as does “yellowing” for Y. For the letter Z, we have to take it on trust that the images are the result from “an etched letterpress printing plate made of zinc”.

Ampersand& (2007)

Ampersand& (2007)
Andrew Morrison
Board cover, perfect bound. H180 x W180 mm, 22 pages. Acquired from the artist, 5 May 2020.
Photos: Books On Books Collection. Displayed with artist’s permission.

The sneaky ampersand at the beginning of Two Hand Press A-Z may have escaped from Ampersand& — or given the density and evenness of the possible escapee’s color, perhaps not. Any collection of wooden type will have “character”-giving flaws — nicks, nocks and abrasions. So it is with this … what is the collective noun for ampersands? The variation in shape of these ampersands and Morrison’s flaunty display of them deliver even more character. And note the watermark in the Somerset paper peeking through the third image below.

Further Reading

“The Last Word on the Ampersand“. 27 June 2020. Books On Books Collection.

“David Clifford“. 15 September 2021. Books On Books Collection.

Bliss, Douglas Percy. 2013. A history of wood engraving: the original edition. New York: Skyhorse Press. Originally published by J.M. Dent in 1928.

Frost, Gary. 1996. Teaching set of historical bookbindings. Utopia, Tex: Gary Frost, Dry Frio Bindery.

Hanmer, Karen. 2013. Biblio Tech. Glenview, IL: Karen Hanmer Book Arts.

Bookmarking Book Art – Julia Hou

Books On Books1 Comment

Julia Hou’s Asterisk (2019) may remind you of an E.E. Cummings’ poem or a Hasegawa Tōhaku print or the Xu Bing animation The Character of Characters. Just as appreciation of Cummings grows with exposure to broken syntax and playful typographic layout in other poems — or of Tōhaku, as understanding of the depth effects that minimalism, size, definition and tone can have on the eye — or of Xu Bing, as his inspiration from Autumn Colors on the Qiao and Hua Mountains (c. 1296) and The Sutra on the Lotus of the Sublime Dharma  (c. 1315) both by Zhao Mengfu is learned, appreciation of Asterisk grows as more is understood about how Hou made her digital artist book. Screen grabs of Asterisk, such as the sequential ones below, only hint at the work.

Asterisk (2019) Julia Hou

To read Asterisk, click here and press the letter “f” to move forward through the work. Hou’s poem reveals itself in black text that turns red as a “refrain”-like block of text over which the poem’s lines sit dissolves into characters that fly up like leaves or birds, fall down like rain, float down like snow, or coalesce into foreground or tree-like shapes.

Colored in blue, the asterisks take up a left foreground position, bubbling up and falling back like a fountain of water available to refresh the tree-like forms made of letters, but as the artist book is scrolled forward from left to right, the asterisk fountain disperses across the screen like spray, butterflies or bluebirds. Here is a transcript, as it were:

Asterisk
the last time you were here was years ago
before you were punctured by asterisks
and written into footnotes.
the night your mother read your first published story
and told you it was too sad
too linear.
she told you to let in the light
to rip away whatever fears you'd stapled to your chest
to see the forest for the trees
and you tried. you raised your voice
spoke with confidence, loud and red
but it all seemed to fade into whitespace
as if God Himself had decided to erase
and rewrite you

[Refrain - which varies in length with each forward movement or refresh]

what do you see what do you see  what do you see  what do you
see what do you see  an ink speckled sky  an ink speckled sky
an ink speckled sky  an ink speckled sky  an ink speckled sky
an  ink speckled  sky  an ink speckled  sky   an ink speckled
sky an ink speckled sky  and tree only traveler and tree only
traveler and tree only traveler and tree only traveler and tr
ee only traveler and tree  only traveler and tree only travel
er  look behind you look behind you look behind you look behi
nd you look behind you look behind you

Where appreciation on each revisiting of Cummings, Tōhaku or Xu Bing increases with the perceiver’s personal growth, Asterisk itself varies with each accessing, with access from the artist’s site or from the Carnegie Mellon University libraries’ Artists’ Book Collection, and with keyboard/screenpad interaction. As if in an online game, the reader/viewer must keep up. Hou has created her artist book with Satoru Ozaki’s created-index, a game app exploring a surreal 3D typographical world. Depending on how the reader/viewer touches the screenpad or moves the cursor and presses “f” to go forward or “b” to go back, the viewpoint tilts and pivots. It is like manipulating a sculptural bookwork such as Francisca Prieto’s The Antibook (2002).

Artist books born-digital vary wildly from one another — perhaps more so than analog artist’s books or even hybrids, or perhaps it’s just that we are not used to the artist’s “new material and tools”. Carnegie Mellon University’s acquisition and preservation of Hou’s digital artist book leads further into thinking about Asterisk‘s material status. The files can be downloaded here, but what is it that has been collected? Is its shape-shifting merely analogous to a viewer’s shifting perspective on an artist book in a physical environment? It would be interesting to have Matthew Kirschenbaum’s perspective on the preservation effort that Carnegie Mellon has put into Hou’s artist book and how that relates to his Mechanisms‘ analysis of “the textual and technical primitives of electronic writing that govern writing, inscription, and textual transmission in all media: erasure, variability, repeatability, and survivability” — in essence, the materiality of works like Hou’s.

Amaranth Borsuk’s The Book also provides a useful context here in its narrative of the book’s digital history from the Memex in Vannevar Bush‘s 1945 classic “As we may think” to T.L. Uglow‘s 100-author blockchain collaboration in 2017, A Universe Explodes from Visual Editions’ series Editions at Play. Borsuk reminds us:

Our current moment appears to be much like the first centuries of movable type, a cusp. Just as manuscript books persisted into the Gutenberg era, books currently exist in multiple forms simultaneously: as paperbacks, audiobooks, EPUB downloads, and, in rare cases, interactive digital experiences. (p. 244)

Borsuk weaves into this moment of the book’s future a reminder that print affordances such as tactility (or the haptic) and the paratextual (those peripheral elements like page numbers, running heads, ISBNs, etc., that Gary Frost argues “make the book a book”) have been finding fresh ways into the way we read digitally. The touchscreen enables us to read between the lines literally in the novella Pry (2014) by Samantha Gorman and Danny Cannizaro (2014). Breathe (2018) by Kate Pullinger, another work in the Editions at Play series, uses GPS to detect and insert the reader’s location, the time and weather, and when the reader tilts the device or rubs the screen, hidden messages from the story’s (the reader’s?) ghosts appear.

To add to Borsuk’s history (and conclude) with an analogue precursor, consider Livre de Prières Tissé d’après les enluminures des manuscrits du XIVe au XVIe siècle (which translates as Book of Prayers woven after illuminations in manuscripts of the 14th and 15th century).

Created in Lyon, France (1886-1887), Livre de Prières Tissé presents a bridge from the illuminated books on which it is patterned to Hou’s Asterisk, driven by a set of instructions designed to be carried out by a machine. Every image, letter, ornament and page of Livre de Prières Tissé consists of silver and black silk thread woven on silk looms programmed with the punched-card system developed by Joseph-Marie Jacquard (1752-1834). Those perforated cards inspired the famous “Analytical Engine” conceived by Charles Babbage (1791-1871), which in turn inspired Ada Lovelace (1815-1852) to compose its first computer program: a set of instructions designed to be carried out by a machine.

Further Reading

Borsuk, Amaranth. The Book (Cambridge, MA: MIT Press, 2018).

Hindman, Sarah. “Meet Me at the World’s Fair“, Abebooks.com (ND). Accessed 22 June 2020.

Kirschenbaum, Matthew G. Mechanisms: New Media and the Forensic Imagination (Cambridge, MA: MIT Press, 2007).

Norman, Jeremy. “A Prayerbook Entirely Woven by the Jacquard Loom: The First Book Produced by a Program or Digitally Produced Book?“, Jeremy Norman’s History of Information, 20 April 2020. Accessed 22 June 2020.

Prisbylla, Andrew. “Art Meets Tech in Born-Digital Artist’s Book“, News/Carnegie Mellon University, 4 June 2020. Accessed 21 June 2020.

Books On Books Collection – Doug Beube

Books On BooksLeave a comment

Breaking the Codex (2011)

Doug Beube: Breaking the Codex
Marian Cohn, ed. (New York: Etc. Etc. The Iconoclastic Museum Press, 2011). Acquired from the artist, 15 February 2014. Photo: Books On Books Collection

Jacket, outer and inner. Photos: Courtesy of the artist.

Back and front covers. Photo: Courtesy of the artist.

In an interview with Judith Hoffberg, Doug Beube spoke of experiencing

the whole book as an entity in itself, which can’t be done by reading line by line. The book’s not made to do that. Readers experience the totality of the book by building up linear movement, word by word, sentence by sentence, etc. and I’m interested in the book as a simultaneous experience. —Umbrella, Vol 25, No 3-4 (2002)

Doug Beube: Breaking the Codex (2011) documents the impression that, in pursuit of that experience, Beube has foreshadowed and/or echoed nearly every variation of book art in play from the 1980s to the early twenty-first century. Beube has been extraordinarily inventive with the book as raw artistic material but not only for the sake of that experience. Beube is a biblioclast and an ideoclast. His works have altered the codex form and deployed its “syntax” and its metaphoric identities to address recurring political, social and philosophical themes. The two small works in the Books On Books Collection lean more toward the aesthetic and philosophical themes, but the presence of Doug Beube: Breaking the Codex makes a handy reminder of the artist’s substantial body of larger ideoclastic works.

Empty Talk (2016)

Empty Talk (2016)
Doug Beube
Altered book, plexi glass, acrylic box, wood. Framed, H286 x W232 x D51 mm.
Acquired from Kaller Fine Arts, 20 July 2017. Photo: Books On Books Collection.

Views of Empty Talk. Photos: Courtesy of the artist.

Empty Talk is part of the Speechless series, which derives from the work Cut ‘Shortcomings’ (2015). Beube describes the origin of the works:

‘Shortcomings’ is the original title of the graphic novel by cartoonist Adrian Tomine. It was published by Drawn and Quarterly in Montreal, Canada in 2007. The genre of this art form with seven to nine cells per page, in a gridded format, is drawn in black and white with ‘speech bubbles’ floating overhead of the characters in the book. In the Speechless series, an ongoing collage project, is the removal and outlining of the drawings and speech bubbles using an surgeon’s knife. Reducing the content to line drawings, the pages become veiled layers, a dissected essence of the story that the brain comprehends as both linear and abstract. Between the two, narrative and abstraction, it invites the viewer to literally read between the lines and pages. The final artwork is presented as four pages deep separated by 3/16th inch foam core. The backing of the meticulously cut mash-up of the collage is another version of ‘Shortcomings’ that is sliced into strips then stacked on top of one another. — Dougbeube.com. Accessed 16 April 2020.

Photo: Books On Books Collection.

Hanging on a wall in the collection, Empty Talk mesmerizes. It balances an abstract figure resulting from excision and collage against its pun and linguistic/visual jigsaw puzzle. That tension between abstraction and linearity harks back to Beube’s stated pursuit of “the book as a simultaneous experience” in tension with the reader’s linear experience of it. A kind of cross-eyed, twisted brain state.

Red Infinity #4 (2017)

Red Infinity #4 (2017)
Doug Beube
Altered book. 152 x 83 x 57 mm. Acquired from SeagerGray Gallery, 7 April 2020. Photo: Books On Books Collection.

Photos: Books On Books Collection.

Red Infinity #4. Photo: Courtesy of the artist.

The book from which Red Infinity is formed is The Word: A Look at the Vocabulary of English by Charlton Laird (New York: Simon and Schuster, 1981). At play are at least three interlocking puns: “in the beginning was The Word”; the Möbius strip, a secular never-ending Alpha and Omega; and the symbol of infinity, a secular “world without end”. And the bonus fourth: take The Word as “red/read”. The surfaces of Red Infinity invite touch, but its fragility forbids it. Its weight less than a small bird’s nest, Red Infinity belies its weighty allusions. Here is infinity from the finite.

Looking Outside the Collection

Since Doug Beube: Breaking the Codex (2011), the artist has continued to create large numbers of individual bookworks, but another type of work has come to the fore: large dynamic multimedia installations: Melt (2014), Dis/Solve (2018) and Wash (2020). The first two still incorporate the book as artistic material, but the third moves away from it. Variously requiring participation or observation in the moment as with a performance, these works ironically remind us of Beube’s observation that

The codex is intractable as a technology; restricted from interacting with it by not altering its inevitable course, you read linearly from beginning to end. It is essentially inflexible. That is its built-in personality flaw; that is its elegance. — Dougbeube.com. Accessed 18 April 2020.

Melt (2104)
Doug Beube
“… an environmentally sensitive sculpture that involves six selected books physically carved according to their theme. Once frozen, the ice functions to animate messages for social and political conditions, cultures of power or violence both physical and psychological, and those structures existing to support the inverse of the latter. Because Melt is subject to the weather, the anachronistic technology of the book is leveraged into the environment directly.”
Photos: Courtesy of artist.

Dis/Solve (2018)
Doug Beube
“… an environmentally sensitive sculpture that presents two books that have been physically carved and frozen into blocks of ice. …One book is Arab and Jew; Wounded Spirits in a Promised Land by David K. Shipler and the other is The High Walls of Jerusalem by Roland Sanders. The word ABRAHAM is carved into the books A-B-R on the left side and A-H-A-M, on the other. As the ice melts, the water is captured by two steel plinths that drain into one tank. The water is dispensed into bottles with labels that read dis/SOLUTION.”
Photos: Courtesy of artist.

Wash (2020)
Doug Beube
“…a collection of specially crafted soap bars etched with racial slurs and epithets. Carefully set onto a wall of soap dishes, this arrangement invites participants to wash their hands with a bar, letting the ink flow from the letters and mix with the white suds and lather.”
Photos: Courtesy of artist.

Fully experiencing either his dynamic or interactive installations re-enacts this linearity, this “built-in personality flaw” of the codex. Even accessing them by still image (online or offline in a book) or by moving image reminds us secondhand of this flaw. Perhaps the flaw belongs not only to the codex technology (there is no book present in Wash) but to any work of art “bound” by linear process and time. Whether caught by the experiencing, the image or merely the concept, we stand then to be implicated in what these three installations address: religious, environmental and political conflict and “othering” slurs — things of which we cannot wash our hands.

Further Reading

Barry, Rebecca. “Doug Beube’s Frozen Books Installation in Brooklyn Tackles Climate Change and Geopolitics“, Fine Books Magazine, 2 October 2018. Accessed 19 April 2020. Commentary on Dis/Solve.

Cohn, Marian (ed.). Doug Beube: Breaking the Codex (New York: Etc. Etc. The Iconoclastic Museum Press, 2011). “Etc. Etc. The Iconoclastic Museum” is a fictional mueseum invented by Beube in 1981 and curated by the equally fictional Art Gossip. This additional bit of evidence of Beube’s wide-ranging creativity is mentioned in the interview with Judith Hoffberg, entitled “A Cut Up and a Book Artist”, originally published in the journal Umbrella and included as a chapter in this book.

Frost, Gary. The Future of the Book (2000-2009). Available through the Wayback Machine. Accessed 19 April 2020.

In the Hoffberg interview, Beube mentions Gary Frost’s influence via his deep-seated knowledge of the history of the book. There is that, but there is also Frost’s ongoing exploration of the haptic nature of the book. Both strands of influence can be seen throughout Doug Beube: Breaking the Codex. But where Frost would seek the possibility of an ongoing link between the print and the digital — “In place of simplistic displacements a complex interaction of book formats surrounds us and continues to challenge our reading skills” (February 2006) — Beube finds a more sardonic and acerbic humorous split. A twisted phonebook dangled before his face in the photo entitled Facebook to create a self-portrait “both acknowledges and satirizes the intended community of computer users.”

Roalf, Peggy. “Doug Beube on Reading Art“, DART: Design Arts Daily, 8 July 2015. Accessed 19 April 2020. Interview in which Beube discusses the larger work Cut “Shortcomings” from which Empty Talk is derived.

Smith, Keith. The New Structure of the Visual Book (2003)

____________. The New Text in the Book Format (2004)

Beube’s aim at an experience of the wholeness of the book plays off a major theme in Smith’s two books: “Composing the book, as well as the pictures it contains, creates pacing in turning pages. Just as poetry and cinema are conceived in time, so is a book.”  Both Smith and Beube are interested in the structure of the book, “the mechanical aspects of the book as  a technology, and how it functions as a container of  information,” as Beube puts it. But where Smith pushes the traditional form of the book to enhance the book experience that “Events depicted in writing unfold through time in space, alongside the physical act of turning pages,” Beube is “trying to solve the problem of experiencing the content of the book as a visual phenomenon, layering it and transforming it into a visual object.”

Bookmarking Book Art — Doug Beube

Books On BooksLeave a comment

Doug Beube’s works exude the influence of his studies with Keith A. Smith and Gary Frost, craftsmen and scholars whose work has been referenced here.  Eleven years ago, in an interview with Judith Hoffberg in Umbrella, Vol 25, No 3-4 (2002), Beube speaks of experiencing

the whole book as an entity in itself, which can’t be done by reading line by line. The book’s not made to do that. Readers experience the totality of the book by building up linear movement, word-byword, sentence by sentence, etc. and I’m interested in the book as a simultaneous experience.

The experience of the wholeness of the book plays off the major theme of Smith’s The New Structure of the Visual Book and The New Text in the Book Format: “Composing the book, as well as the pictures it contains, creates pacing in turning pages. Just as poetry and cinema are conceived in time, so is a book.”  Both Smith and Beube are interested in the structure of the book, “the mechanical aspects of the book as  a technology, and how it functions as a container of  information,” as Beube puts it.

But where Beube is “trying to solve the problem of experiencing the content of the book as a visual phenomenon, layering it and transforming it into a visual object,” Smith pushes the traditional form of the book to enhance the book experience that “Events depicted in writing unfold through time in space, alongside the physical act of turning pages.”

Although Gary Frost’s influence on Beube’s deep-seated inspiration from the history of the book can be seen in the first two examples below, Beube’s more acerbic view of our digital world in Facebook, the third example, is where they part company.  Frost is still seeking the possibility of an ongoing link between the print and the digital:  “The circumstance of mixed delivery options for books reveals a surprisingly complementary and interdependent relation of affordances and a third stance going forward. We advocate for the interdependence of paper and screen books; neither will flourish without the other.”   Beube’s twisted phonebook dangled before his face in Facebook “both acknowledges and satirizes the intended community of computer users.”

Beube divides his bookworks into methodological categories — Fold, Gouge and Cut:

City by Doug Beube

Inspired by a phrase from the Hindu scriptures, the Vedas, in 1989 I began folding the pages of books in on themselves. The phrase goes, “Curving back upon myself, I create again and again.”

via Doug Beube – Fold.

"Reading

Using various power tools I selectively removed parts of the cover, pages, and content, for example, by grinding them away. The underlying pages revealed themselves, as hidden depictions interacting with top layers, interrupting what might have been an undisturbed reading of text and image now viewed as an altered book.

via Doug Beube – Gouge.

"Facebook2009altered

Theoretically and physically I ‘excavate’ the book, as a phenomenological endeavor, creating hypertexts, as if the text block itself is an archaeological site. When I appropriate books, their words are sometimes readable, their shapes are sometimes recognizable, but in every case they are transformed into objects that are visual and speak volumes.

via Doug Beube – Cut.

See also

Bookmarking Book Art – Doug Beube | @scoopit http://sco.lt/9Jn1tp

Bookmarking Book Art — Doug Beube | @scoopit http://sco.lt/8Dp5UH

Bookmarking Book Art — Rebound – An exhibition at the Halsey Institute of Contemporary Art | @scoopit http://sco.lt/5rNMkz

Bookmarking Book Art — Paul Forte | @scoopit http://sco.lt/58SMoz

Can Print and E-Books Coexist? Ceci n’est pas un signet!

Books On Books1 Comment

grWJH

“So a video journalist goes into a bookstore …”  and finds little to report.  Beset by the BBC’s wallowing in non-events and the trivial, I am probably flailing out unfairly at the PBS’s “dog bites man” story or perhaps indigesting a bit of humbug this Christmas season.   MediaShift . VIDEO: Can Print and E-Books Coexist? | PBS.*

At least one commentator (gfrost; Gary Frost?), however, points out what video journalist Joshua Davis and his interviewees failed to explore:  “[M]issed is an inherent interdependence between print and screen books. An eerie complementary fit of the different affordances means that neither will flourish without the other.” Now there is a premise worth exploring, which Gary Frost does (see previous posting).

And what would Joshua Davis and his interviewees make of David Streitfield’s story in the NY Times that sales of e-reading devices seem to have reached a plateau?  “Even as prices fall, though, the dedicated e-reader is losing steam. The market peaked last year, with 23.2 million devices sold, IHS iSuppli said in a report this month. This year, sales will be 15 million. By 2016, the forecast is for seven million devices — as opposed to 340 million tablets, which allow for e-reading and so much more.”

Streitfield’s story actually begins with “the dog that didn’t bark”:  the prices for ebooks themselves have not fallen, despite the predicted result of the US Justice Department’s case against and settlements with six of the big publishers (five, now that two are merging).    For Frost’s premise that neither form — ebook or print — will flourish without the other, does that raise the question of whether either will decline without the other’s declining?   The rules of logic alone suggest otherwise, but consider Streitfield’s “more counterintuitive possibility … that the 2011 demise of Borders, the second-biggest chain, dealt a surprising blow to the e-book industry. Readers could no longer see what they wanted to go home and order.”

Perhaps the ebook and print are more intertwined than even Frost’s premise implies. Simba’s Jonathan Norris is quoted in Streitfield’s article:  “The print industry has been aiding and assisting the e-book industry since the beginning.”    Of course, someone needs to point this out with a cattle prod to the publishers withholding their ebooks from public and academic libraries.  The site TeachingDegree offers a succinct collection of data (PBS take notes) on the topic in a sort of dialectical digital poster.

Perhaps the whole story is just “human reads book” and is not worth a bookmark, but then where would have been the fun of finding out in punning

Magritte-pipe

with Magritte’s painting that the French for bookmark is either un signet (digital) or un marque-page (print), and in English we can make no distinction?

*In fairness to PBS, readers should take a look at the series “Beyond the Book 2012.”

Still, Frost’s Future of the Book goes far deeper.

“How important are paper books?” | TeleRead

Books On BooksLeave a comment

In his Teleread article (11 October 2012), Dan Eldridge picks up on Associate Professor Justin Hollander’s New York Times op-ed piece protesting Education Secretary Arne Duncan’s  comment before the National Press Club that “over the next few years, [paper] textbooks should be obsolete.”

What makes his comments on comments on a comment bookmark-worthy are the comments they provoked from Gary Frost, Emeritus Conservator at the University of Iowa Libraries and the author of Future of the Book: A Way Forward (Coralville, IA: Iowa Book Works, 2012):

“The current rush of changes in print and ebook uses is dramatic evidence of our close relationship with books. A flood of digital reading devices and hybrid software and hardware designs are emerging as the print book is augmented by screen delivery and associated cloud libraries, ebook collection building, automated index and searching, and screen learning. While all screen book simulations deviate from print conventions the hybrids that emerge reference each other and often resonate with each other.  This rapidly developing book production and consumption landscape is dynamic and unique in media history, or is it?

It’s pretty amazing that little attention is paid to the emerging composite of print and screen delivery of books.  I mean looking directly between them and at an emergent functionality of all books. There you can now perceive the interdependence of print and screen and the likelihood that neither will flourish without the other. . . .  Also involved are other forums, other than the forum of current technologies, their products and marketing. These other disciplines include academic book studies, cognitive science aspects of reading, book sustainability within libraries and many vectors of book arts.”

One might single out the infiltration of the book by “the social web” from the vector of current technologies that Frost insightfully identifies as necessary to explore this moment in the book’s/ebook’s evolution in which those who buy ebooks buy yet more print books.  The ability to annotate and share print books is gradually being replicated, prodded as it were by the phenomenon of the social web.

So here you have it: a comment on comments on comments on comments on a comment.

“Of the making of comments, there is no end.”
